CompactX 3DP - Fume Extractor

Compactx-Filter-Extractor

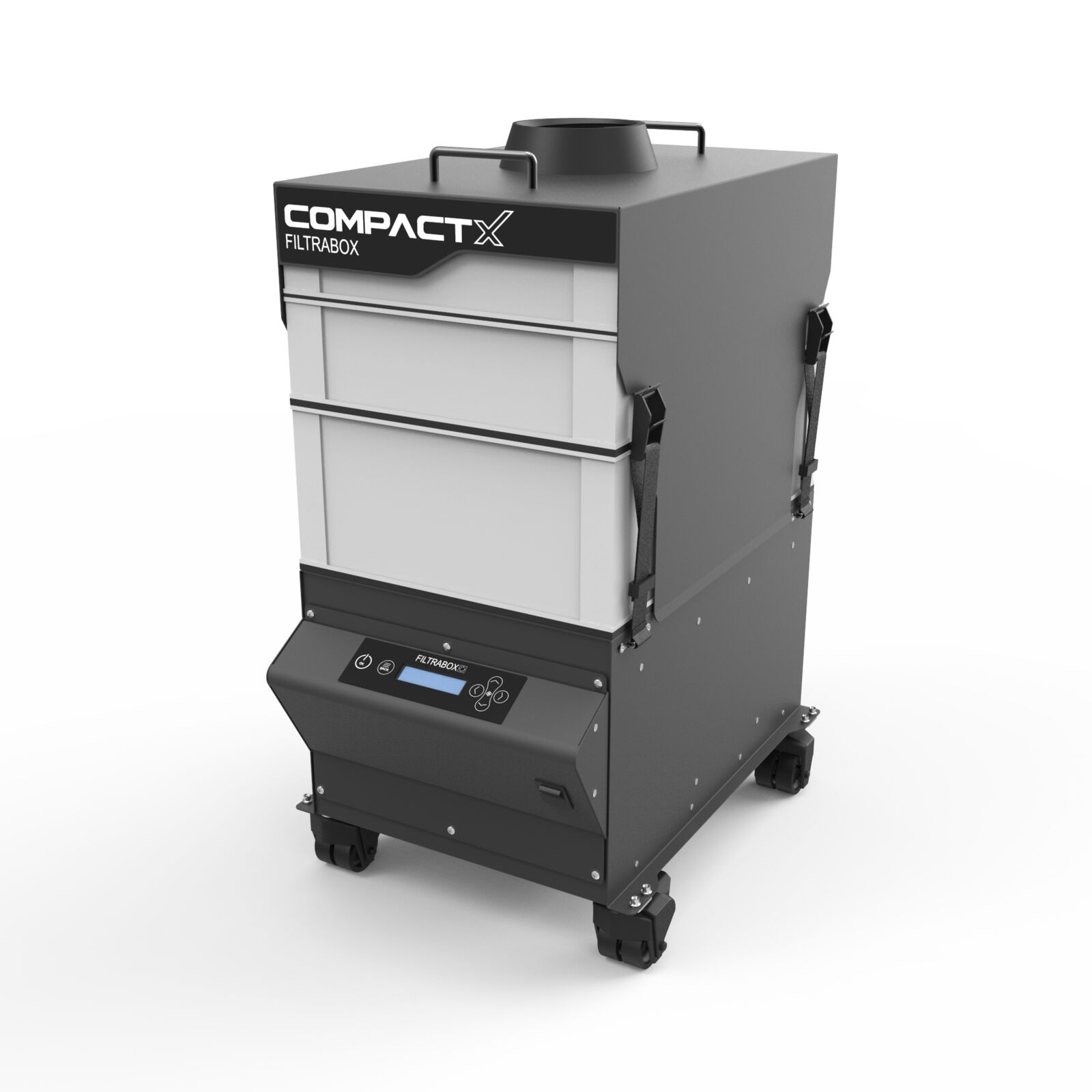

CompactX 3DP
Portable 3D Printing Fume Extractor w/ 1-blower and high capacity 3 stage HEPA filtration for excellent performance for mid-sized to large 3D printers in a space-saving format. Extracts, filters and recirculates clean air into the workspace.

Get In Touch Today
We'll help you find the right machine for your requirements
Click here to fill out our contact form
or give us a call on +44 (0) 121 517 0991

3 Stage Filtration: Rigid Separated Filters

Each individual filter has a specific function within Filtrabox’s 3 stages of filtration:.

3-Stage-Filtration

F9 Pre-filter: The pre-filter removes the majority of the submicronic respirable dust, protecting the critical downstream HEPA filter from strain and premature clogging. The filter media is encased in a strong aluminum cartridge to resist contamination bypass. The high surface area mini-pleat filter media ensures high capacity and efficiency for smaller applications.

HEPA filter: The HEPA filter is tested at 99.999% @ 0.3 microns. This means that it removes 99.999% of the most aerodynamically penetrating particles, known to be 0.3 microns,  while smaller and larger particles are even more effectively captured, resulting in extremely clean air; free of respirable dust. Learn more. The filter media is encased in a rigid aluminum cartridge to resist contamination bypass. Learn more. The high surface area mini-pleat filter media ensures high capacity and efficiency for smaller applications.

Gas Filter: The gas filter is filled with a blend of high-grade activated carbon and potassium permanganate, which removes the broadest spectrum of laser-generated VOC gases at the molecular level. 20 lbs of the adsorption media ensure high capacity and efficiency for smaller applications.  Learn more about VOCs.



Why we use individually separated filters HEPA and gas filters vs. combined HEPA/Carbon filters:

Different processes emit different proportions of particles vs. VOC gases. With individually separated filters, each filter can be replaced when it actually is spent. In contrast, in a combined filter where the HEPA and Gas filters are inseparable, the barely used HEPA filter portion may have to be sacrificed because the gas portion is spent (or vice-versa). This is wasteful and less economic.

Why are Rigid Filter Cartridges so important?

Filtrabox systems use high-pressure vacuum blowers to suction the fumes out from the DTF oven and into high-efficiency filters. As the filters load up with contaminants, the negative pressure within Filtrabox increases. The sheet-metal cabinet and seals are designed to resist deformation and air leaks under extreme pressure. Therefore, the filters must also be able to resist deformation to prevent
contaminant leakage. All Filtrabox filter cartridges are built tough, using a thick aluminum box structure to resist flex so that the rubber seals can maintain contact with the sealing surfaces. Cardboard cased filters flex and crumple
under the pressure and moisture leading to leakage of contaminants.


modularity for serviceablity

Our fume extractors comprise many complex electronics components and sensors to monitor and control their performance. However, we have simplified the Filtrabox by consolidating the components into two simple and removable module:

Electronics Module: This module includes all the interface, control, blower,
and power systems.

In the event of a field issue, our tech support need only focus on a basic diagnosis to quickly dispatch the module for immediate replacement.
– no tech experience required.


Included filters

Type Material Total Media Cartridge Type
1 Pre-filter Glass Fiber 6 m2 Rigid Aluminum Case
1 HEPA Glass Fiber 6 m2m Rigid Aluminum Case
1 Chemical Cartridge Coconut shell carbon / KMnO4 40 lbsm Rigid Aluminum Case2

Technical / electrical specifications

Quiet operation 50 db
Height 29" (73cm)
Width 15" (38cm)
Depth 21" (53cm)
Warranty 1 year
Voltage 120V or 240V
Frequency 60Hz or 50Hz
Rated Amps 10A or 12A

INTELLIGENT FLOW REGULATOR

As filters become loaded with contaminants over time, they become more restrictive to airflow. The intelligent flow regulator proportionally increases power to the blowers to automatically overcome the restrictions and maintain consistent fume extraction. Just enter your flow setpoint and Filtrabox does the rest. Filtrabox will also let you know when to change filters.

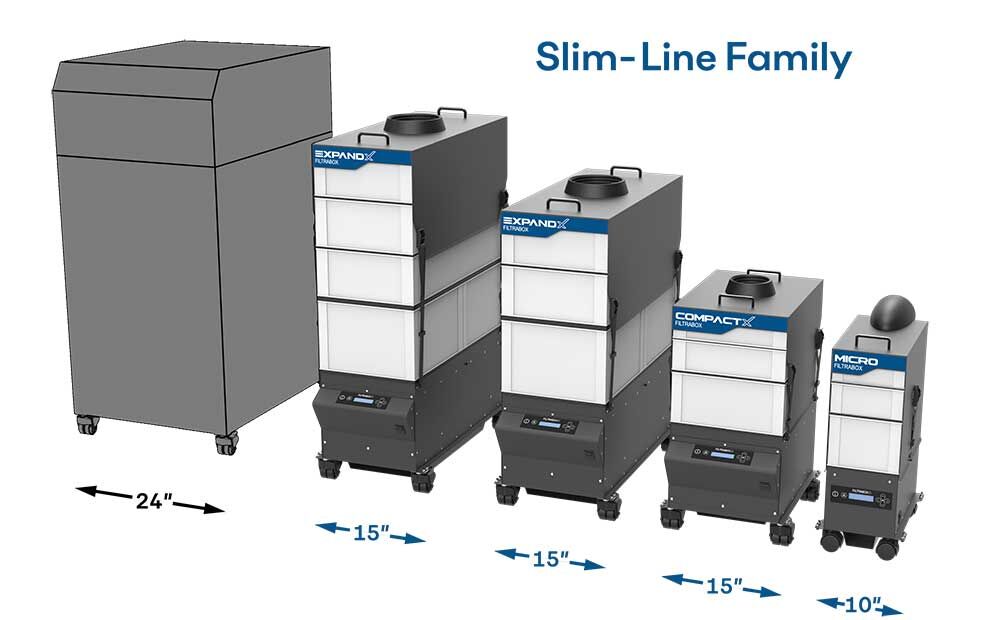

SILM LINE DESIGN

dtf-filter-silm-design

Others try to achieve space savings by offering smaller machines. But this results in less filter capacity, more noise, and less airflow.
The Slim-line design shrinks the width of the extractor and relocates critical performance features into the plentiful depth dimension, allowing for maximum airflow, filter capacity, and noise reduction in a space-saving package -no compromises. Ask us for 3D models of our fume extractors to make your interior design/workflow layout a breeze.


robust, simple user interface

Dust, splash-proof, and impact-resistant, the new membrane touchpad interface offers both improved protection against industrial contaminants and simplified intuitive control. A fume extractor should simply keep the air clean and work when you want it to work.

Simple-interface

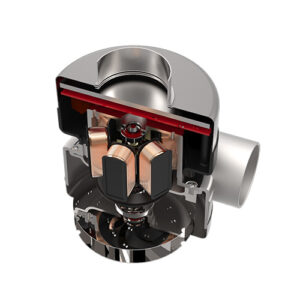

Extreme Air Power: dIGITAL BLOWER

All Filtrabox systems use digital blowers with hyper bearings to create powerful, reliable suction. Traditional brushed blowers inevitably wear out, lose suction and need replacement. Filtrabox’s combination of digital contactless rotors and contaminant-resistant hyper bearings allows for extreme rotational speeds and maintenance-free operation for years; more suction power – no maintenance.

digital-blower-hyper-bearings
